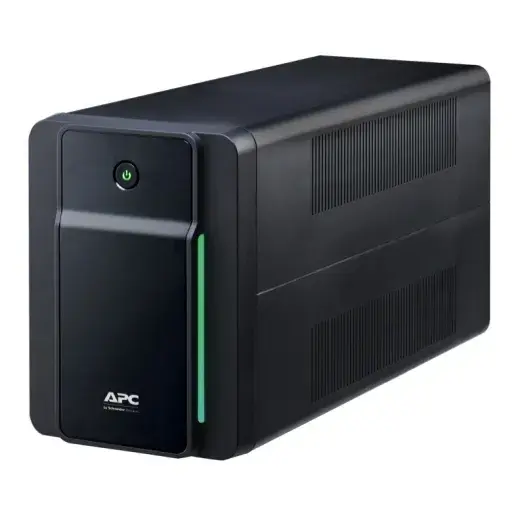

APC BX2200MI-MS 2200VA UPS (Universal Sockets)
- 2200VA / 1200 Watts
- 4 Universal
- 230V Output Voltage
- 230V Input Voltage
- Cable Length 1.2 m
Free Shipping
For all orders over $200
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Fri: 07AM - 06PM
+256 751 786100
Product Description
The electronic devices you rely on for communication, security and entertainment depend on a stable network connection. APC BX2200MI-MS stabilizes and refines the power supply, protecting the connected devices from power disturbances.APC BX2200MI-MS Features
Functional Ease-of-Use Front panel LED indicators with audible alarms to easily tell the functional status. Connected Solution In the event of an extended power outage, prevent potential data loss or corruption with PowerChute Personal Edition Software. Automatic Voltage Regulation Instantly corrects incoming utility power without utilizing the battery, saving the battery for when it is needed most.Output
Max Configurable Power (Watts)
1.2kWatts / 2.2kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations
140 – 300V
Number of Power Cords
1
Input Power Factor at Full Load
0.54
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
8hour(s)
Nominal Battery Voltage
24 V
Expected Battery Life (years)
3 – 5
Battery Volt-Amp-Hour Capacity
216
Runtime
Efficiency
Communications & Management
Control panel
LED Status display with on line : on battery
Audible Alarm
Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rating
273Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection
Physical
Maximum Height
190MM, 19.0CM
Maximum Width
140MM, 14.0CM
Maximum Depth
390MM, 39.0CM
Net Weight
12.3KG
Shipping weight
13.3KG
Shipping Height
297MM, 29.7CM
Shipping Width
235MM, 23.5CM
Shipping Depth
495MM, 49.5CM
Color
Black
SCC Codes
10731304410734
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 3000meters
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 3000meters
Audible noise at 1 meter from surface of unit
40.0dBA
Protection Class
IP20
Conformance
Approvals
CE, EN/IEC 62040-1, EN/IEC 62040-2
