Mikrotik RB951G-2HND 5-Port Gigabit Wireless Router
- The RB951G-2HnD is a wireless SOHO AP
- CPU: Atheros AR9344 600MHz
- Memory: 128MB DDR2 SDRAM
- Ethernet: 5x Gigabit Ethernet ports
- OS: MikroTik RouterOS, Level4 license
Free Shipping
For all orders over $200
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Fri: 07AM - 06PM
+256 751 786100

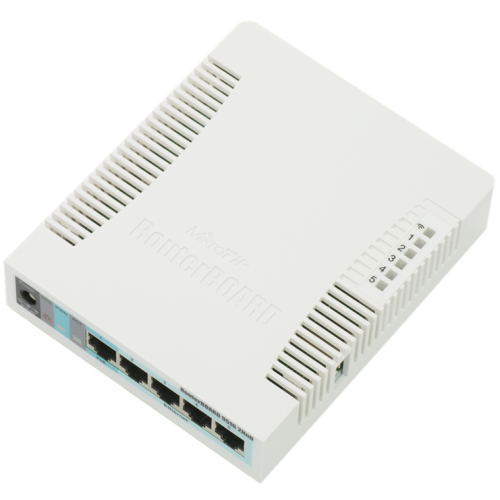

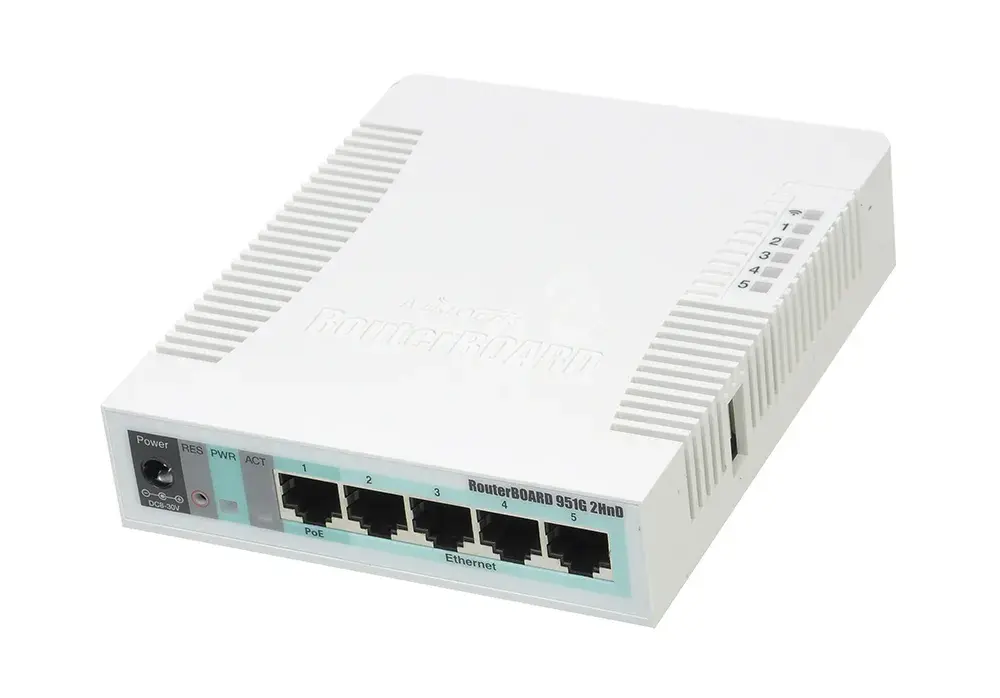

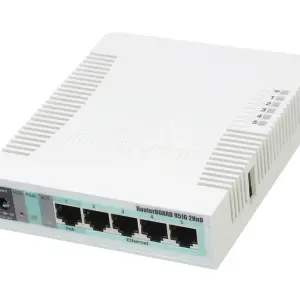

The RB951G-2HnD is a wireless SOHO Gigabit AP with a new generation Atheros CPU and more processing power. It has (5) Gigabit Ethernet ports, (1) USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.
The MikroTik RouterBoard RB951G-2HnD is a small five port Gigabit Ethernet Wireless-N Access Point in a plastic case. Not only is this an attractive looking tiny SOHO unit, its price is almost as low as the RouterOS license alone – there simply is no choice when it comes to extending your wired and wireless home or office network, the MikroTik RouterBoard RB951G-2HnD has it all.
Mikrotik RB951G-2HND Features
CPU: Atheros AR9344 600Mhz • (5) 10/100/1000 Gigabit Ethernet Ports • (1) USB 2.0 Port • Memory: 128MB DDR2 onboard memory • Power Options: PoE: 8-30V DC on Ether 1 (non 802.3af). Jack: 8-30V DC • Power Consumption: Up to 7W • Dimensions: 4.4″ x 5.4″ x 1.1″ (113 x 138 x 29mm) • Weight: (including package and power supply) 0.92lbs (420g) • Operating System: MikroTik RouterOS, Level 4Specifications
| Details | |
|---|---|
| Product code | RB951G-2HnD |
| Architecture | MIPS-BE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 113x138x29mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -20C .. +50C |
Powering
| Details | |
|---|---|
| Max Power consumption | Up to 7W |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| PoE in | Passive PoE |
| DC jack input Voltage | 9-30 V |
| PoE in input Voltage | 9-30 V |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | AR9344 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 30 | -96 |
| MCS7 | 23 | -78 |
Ethernet test results
| RB951G-2HnD | AR9344 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.0 | 983.7 | 232.0 | 950.3 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 81.0 | 983.7 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 81.0 | 983.7 | 210.0 | 860.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 81.0 | 983.7 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
