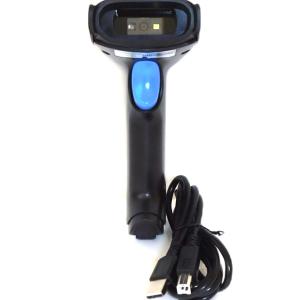

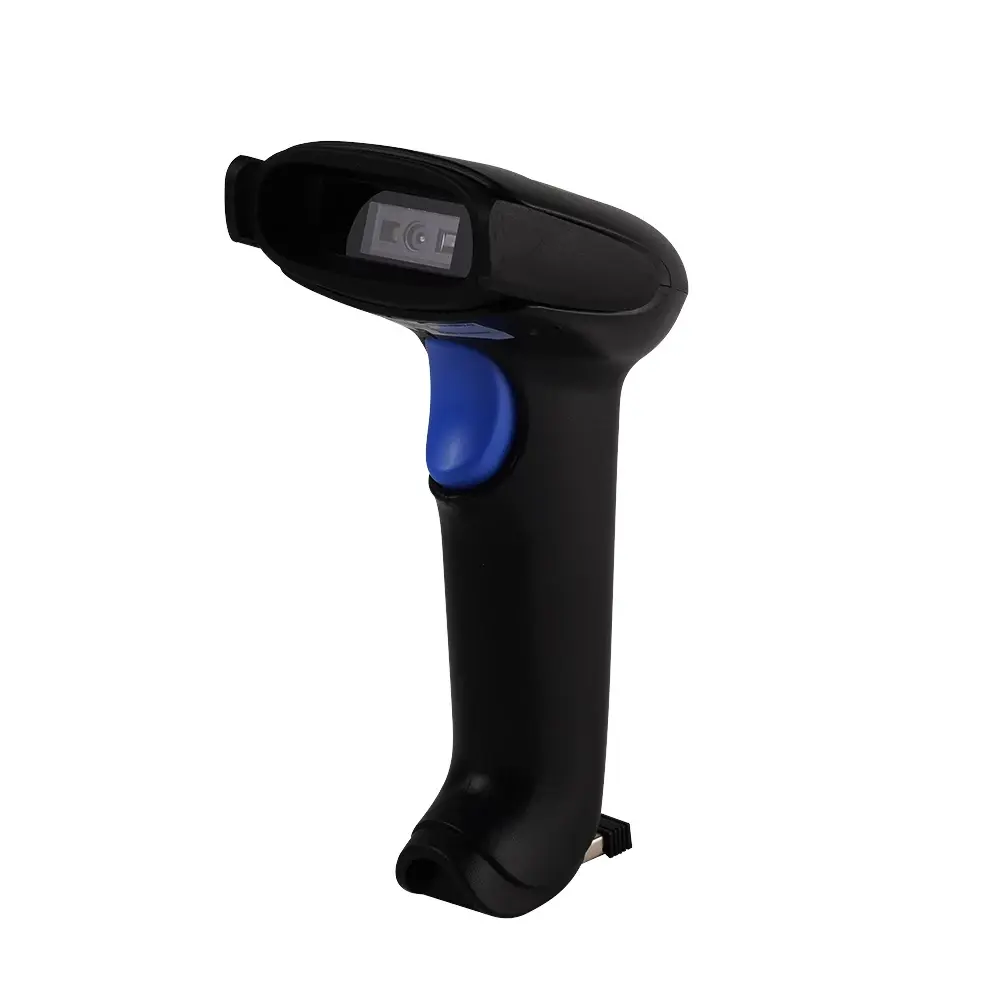

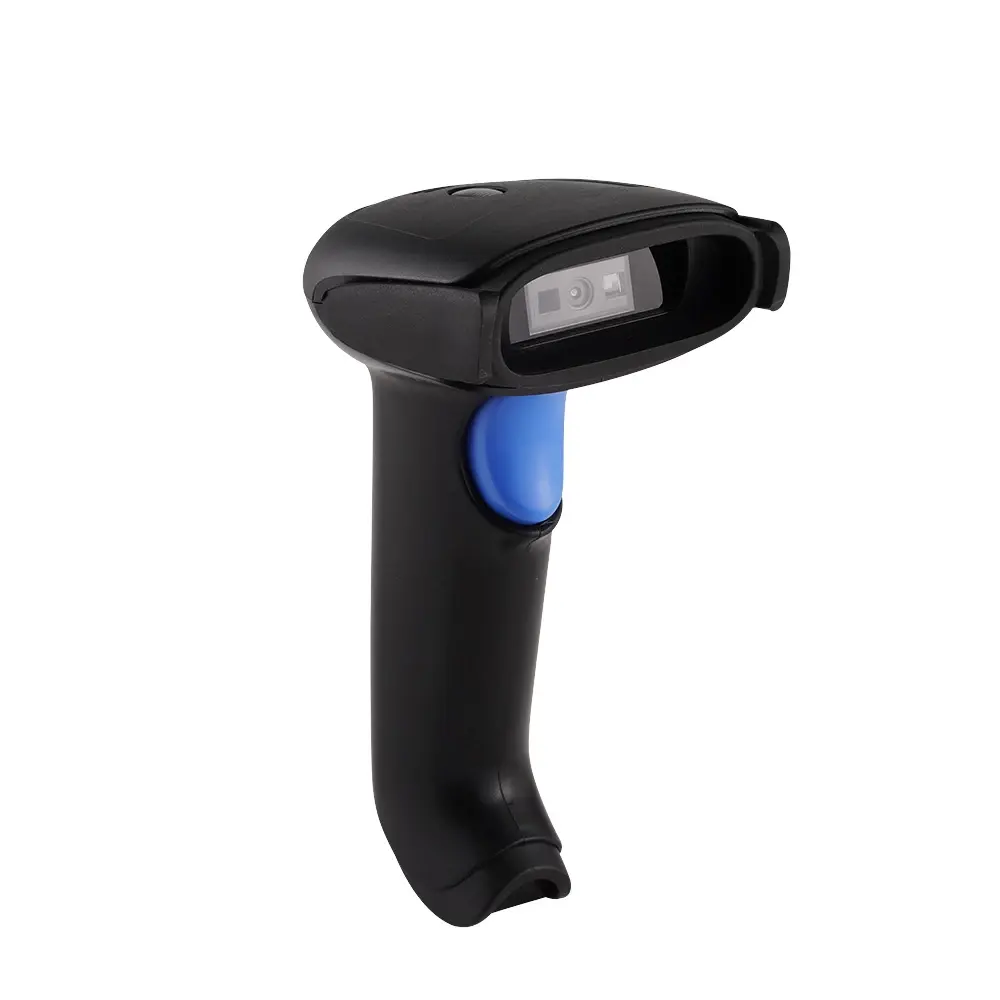

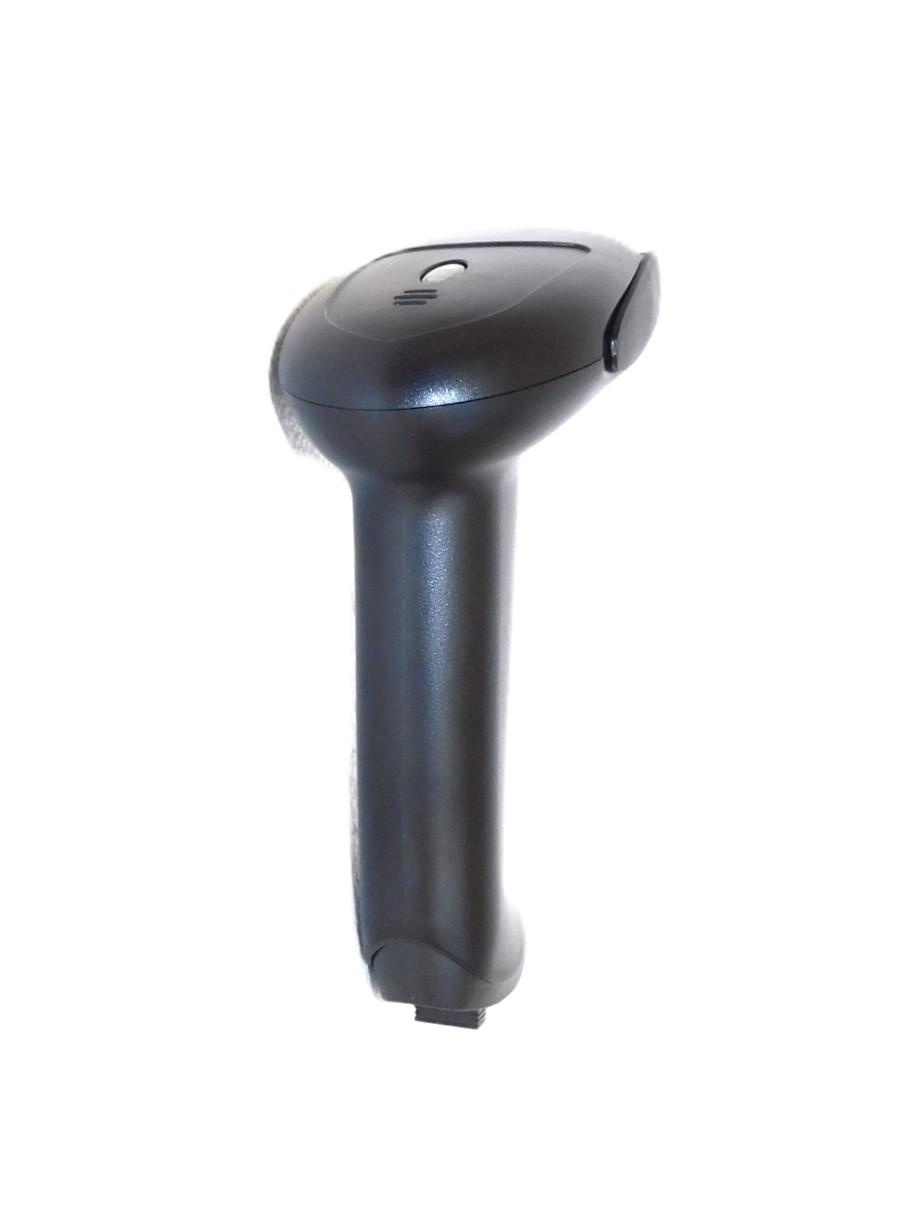

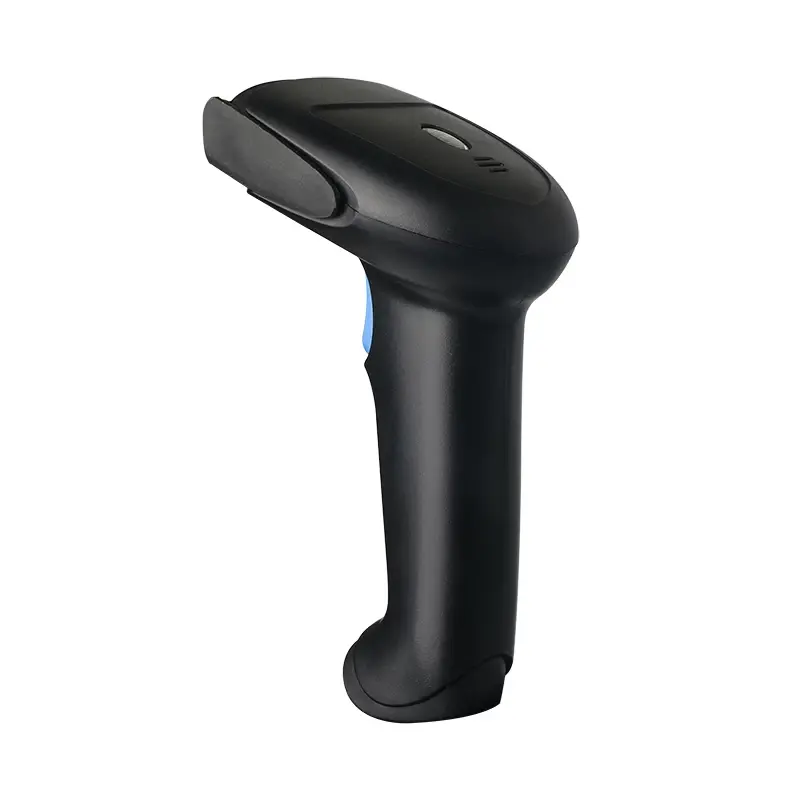

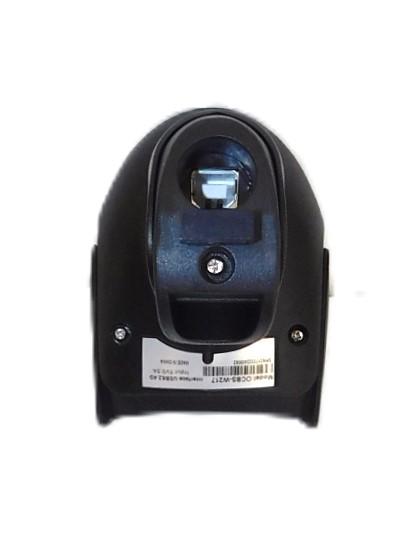

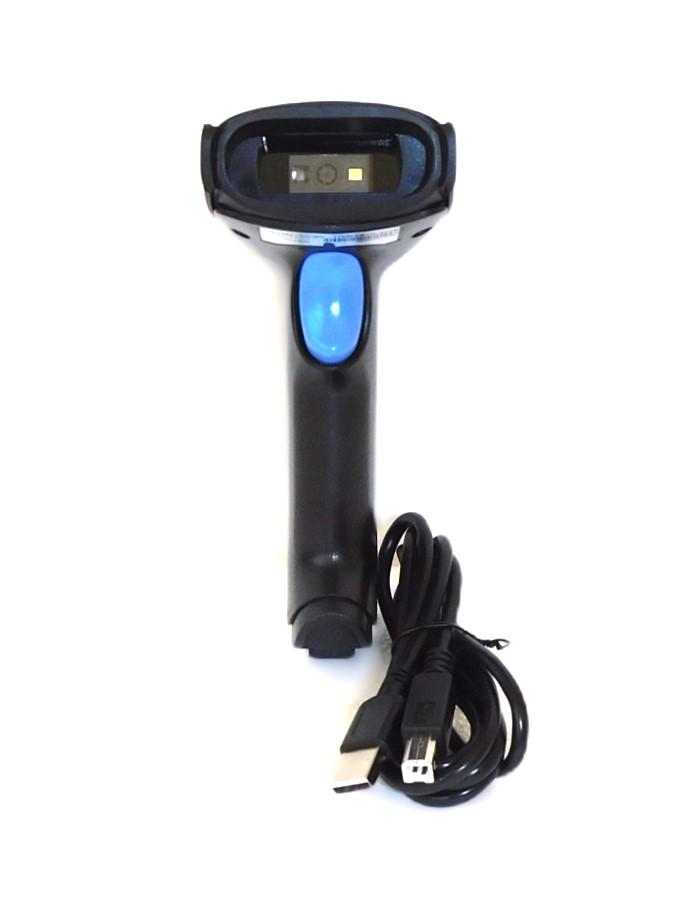

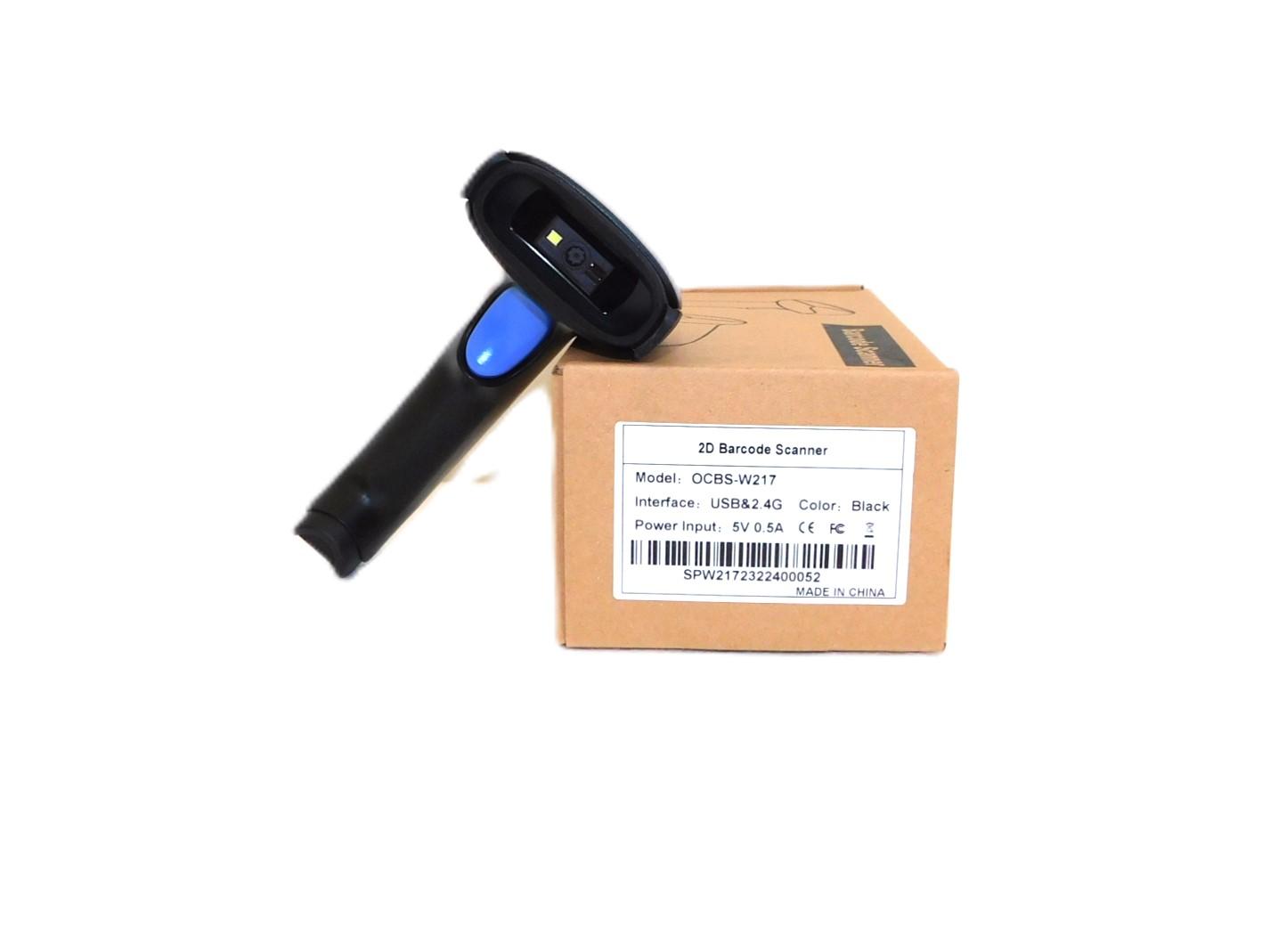

OCBS-W217 2.4GHz Wireless Barcode Scanner
- High performance imaging technology;
- Omni-directional scanning;
- 4 mil excellent scanning accuracy;
- 2.4G wireless and USB transfer data
- 1200mAh lithium battery can work for 12 hours
- 16MB big storage can save 100000 bar codes
- Multi special function setting supported;
- High compatibility for all major 1D and 2D symbols;
- Can read the bar code on the screen and color bar code;
Free Shipping
For all orders over $200
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Fri: 07AM - 06PM
+256 751 786100
Feautre:
High performance imaging technology; Omni-directional scanning; 4 mil excellent scanning accuracy; 2.4G wireless and USB transfer data 1200mAh lithium battery can work for 12 hours 16MB big storage can save 100000 bar codes Multi special function setting supported; High compatibility for all major 1D and 2D symbols; Can read the bar code on the screen and color bar code; Specification:| Interface | USB | |
| System support | Linux，Android，Windows XP、7、8、10，MAC | |
| Sensor | CMOS sensor | |
| Light source | Red LED(Aiming)+White LED(Lighting) | |
| Processor | 32-bit ARM MCU + DSP | |
| Resolution | ≥4mil（PCS90%,CODE 39） | |
| Error rate | 1/5 million | |
| Movement tolerance | 25cm/s | |
| Reading Mode | Image | |
| Trigger mode | Manual,Continuous scanning,Auto-sensing | |
| Prompt mode | Buzzer, indicator(LED) | |
| Wireless | 100 meters 2.4G wireless | |
| Battery | 1200mAh | |
| Memory | 16MB | |
| Charging time | 4 hours | |
| Working time | 12 hours | |
| Print contrast | ≥25% | |
| Material | ABS+PC | |
| Power supply | DC 5V ±5% | |
| Power consumption | 375mW(Working);226mW(standy);750mW(Max) | |
| 【Average Power consumption】 | ||
| Weight | 289g±5g | |
| Inner Box Size | L*W*H: 180 * 115 * 85 (unit：mm) | |
| Package info. | 60*45*38.5 cm 50 pcs/carton, NW.=14.45kg , GW.=16.15kg | |
| Color | Black | |
|
Decoding Capability |
1D | ●Code25-Interleaved ●Code25-Standard ●Code25-Matri |
| ●Code39-Regular ●Code39-FullASCII ●Code32 | ||
| ●Code93-Regular ●Code93-FullASCII ●Code128 | ||
| ●EAN/GSL/UCC-128Auto ●Codabar ●MSI | ||
| ●EAN/JAN-13 ●UPC-A ●JAN-8 ●UPCE | ||
| 2D | ● QR ●Data Matrix ●PDF417 | |
| Scanning Angel | Roll360°,Pitch30°,Yaw45° | |
| Scanning Depth | Code39 4.17mil(15 bytes): 4cm - 8cm | |
| Code128 4.17mil(16 bytes):7cm - 15cm | ||
| Data Matrix 10.83mil(8 bytes):3cm - 9cm | ||
| Code QR 20mil (8 bytes):1cm - 19cm | ||
| Environmental parameter | ||
| IP grade | IP42 | |
| Operating temperature | 0 to 50℃ / 32 to 122℉ | |
| Storage temperature | 0 to 50℃ / 32 to 122℉ | |
| Operation humidity | 20% to 85%(No condensation) | |
| Storage humidity | 20% to 85%(No condensation) | |
| ESD Protection | 15KV air discharge | |
| Shock resistance | 1.5m free fall on concrete surface | |
