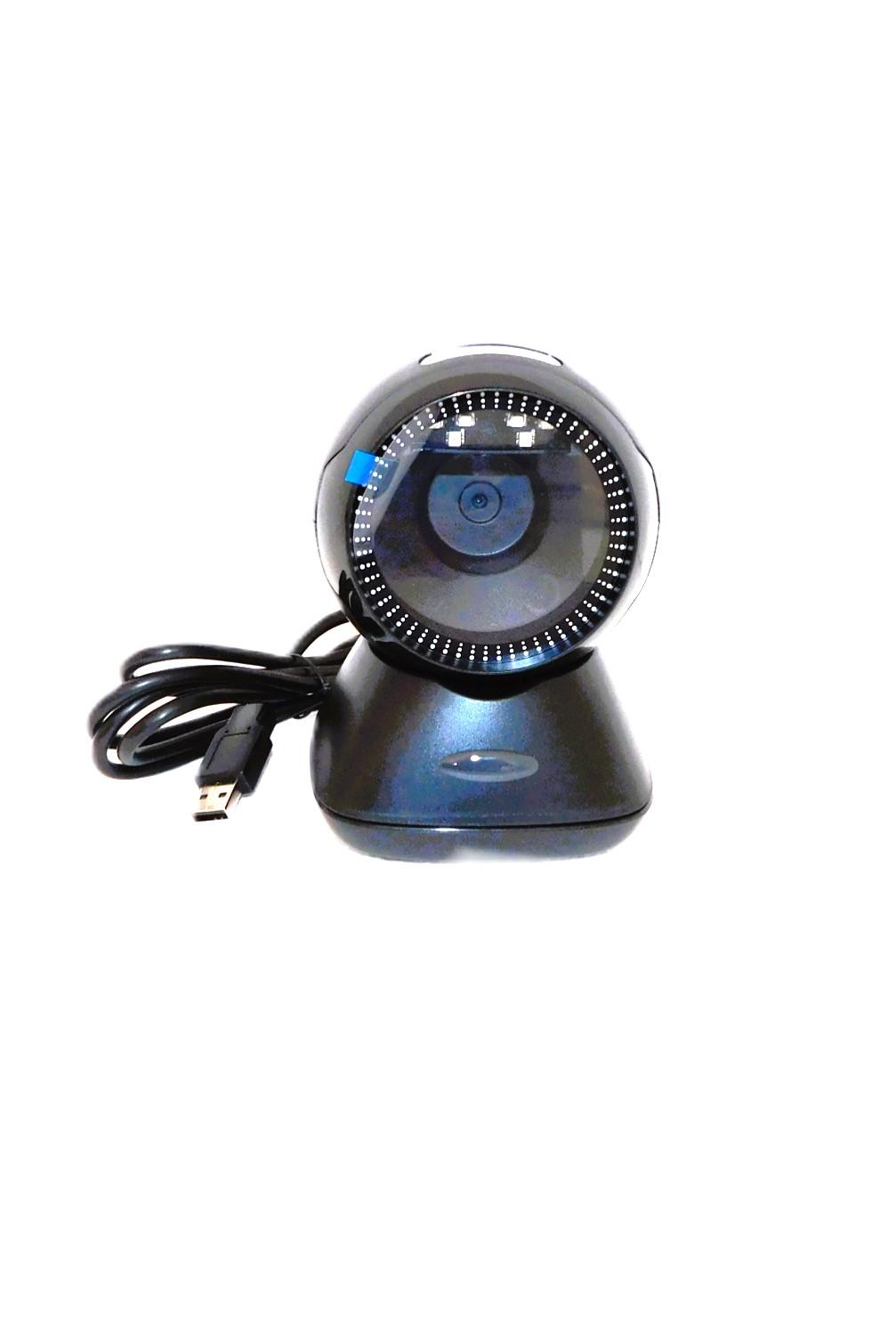

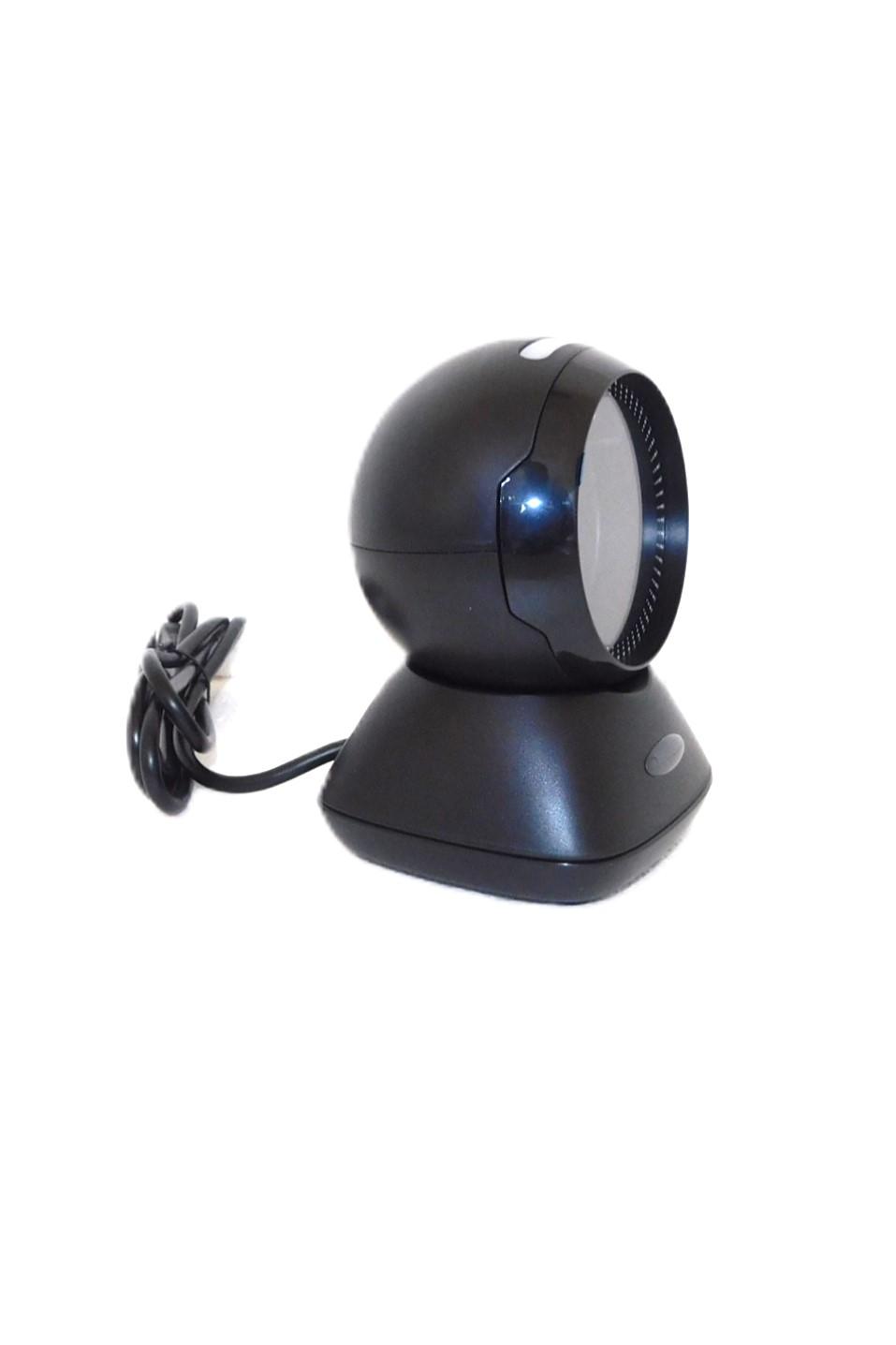

SP-10002D Platform Barcode Reader

DESCRIPTION

SP-10002D Platform Barcode Reader has the excellent capability of reading mobile payment bar codes and provides computer information systems with accurate, simple, and quick data input solutions; the desktop QRcode barcode reader adapts to a huge range of pos machines and is widely used in business applications just like a retail, supermarket, healthcare, inventory, medicine, hospitality, transport, logistics, utility, manufacturing industry, etc. The Platform Barcode Reader hands-free has high performance and high efficiency for payment scanning or commodity code reading is easy to use, simply installed with a USB port for retailers. A platform QR code reader is easy to be connected with your pos terminals or pos system software by USB Cable, and you could  first to pick the ideal one from multiple barcode readers for retail business.

Performance Characteristics
Image (Pixels):	CMOS 840 pixels (H) x 640 pixels (V)
Light Source:	(Aimer) Blue color LED; (Illumination) Red color LED
Field of View:	39°(H) X29°(V)
Roll / Pitch / Yaw:	360°(Roll), ±65°(Skew) , ±65°(Pitch)
Print Contrast:	20% minimum reflective difference
Interfaces Supported:	USB
Motion Tolerances:	>40cm/s
Symbology Decode Capability
1-D:	Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post
2-D:	PDF417, QR code, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, DataMatrix, etc.
User Environment
Operating Temperature:	-20°C to 60°C
Storage Temperature:	-30°C to 70°C
Humidity:	5% to 95% relative humidity,non-condensing
Shock Specifications:	Designed to withstand 1.2m(5’) drops
Ambient Light Immunity:	0-100,000 Lux.
Decode Ranges
Code39(5mil)	0-7cm
Code39(13mil)	0-17cm
QR(20mil)	0-11cm
Performance may be impacted by bar code quality and environmental conditions
