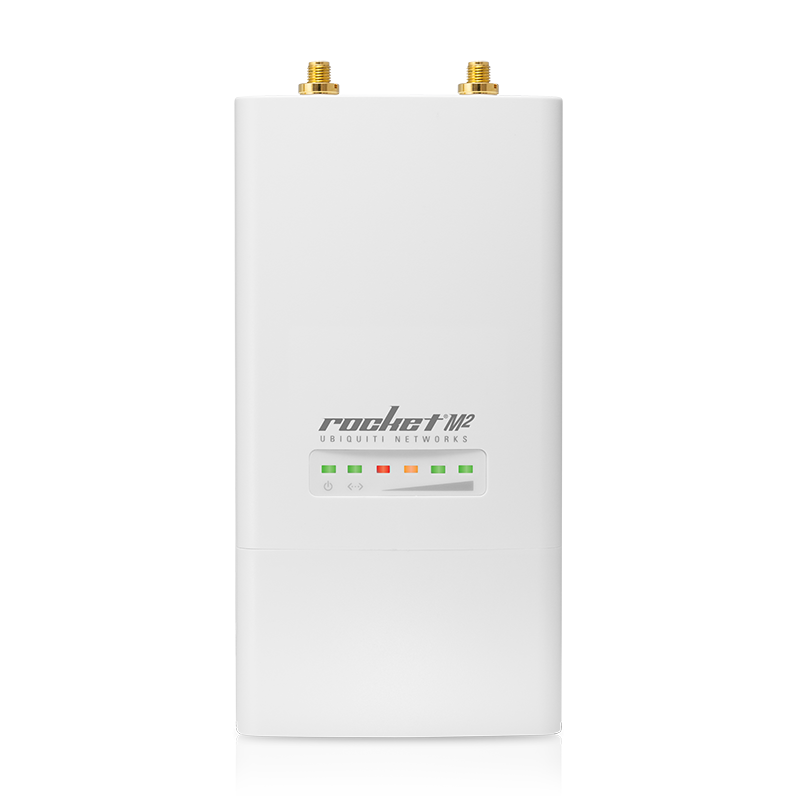

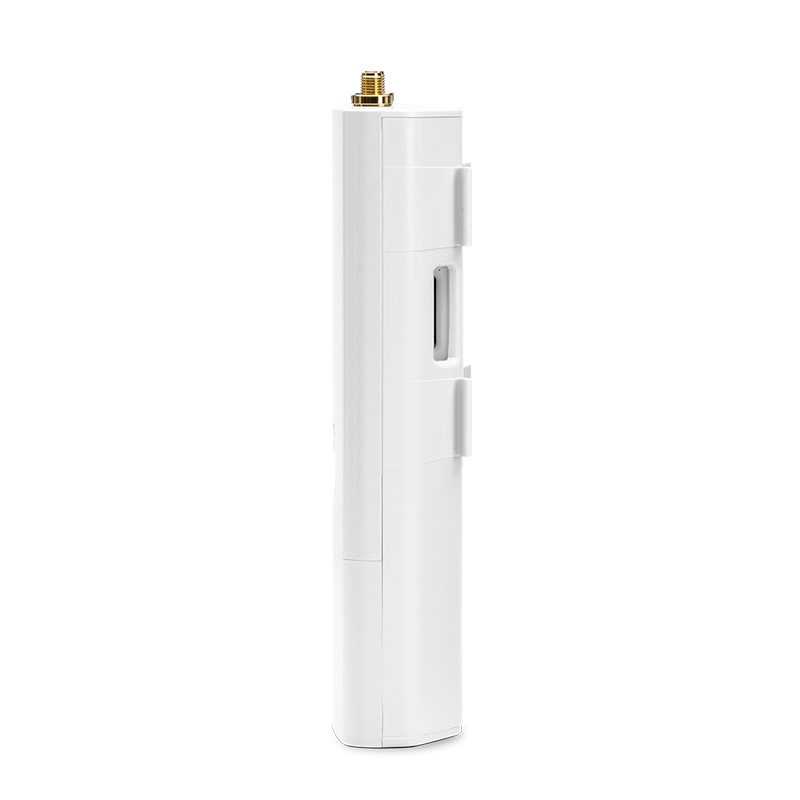

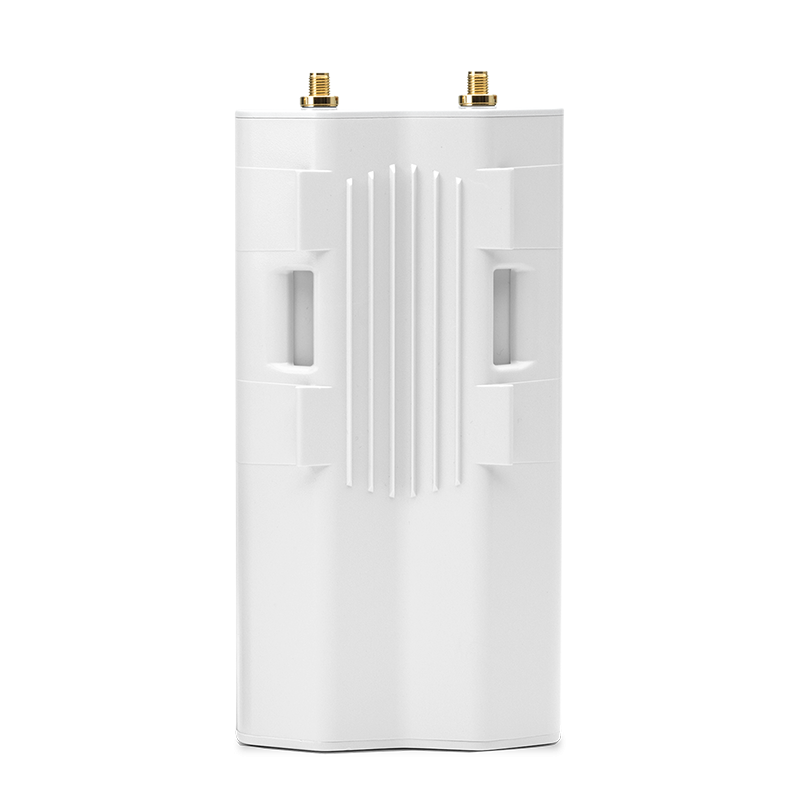

UbiQuiti AirMax Rocket M2 – Wireless Base Station
Key Features
- 300+ subs per sectored base station
- 150Mbps+ PtMP performance
- 50km+ outdoor range
Ubiquiti Rocket M2 - Technical Specifications
System Information
- Processor Specs: Atheros MIPS 24KC, 400MHz
- Memory Information: 64MB SDRAM, 8MB Flash

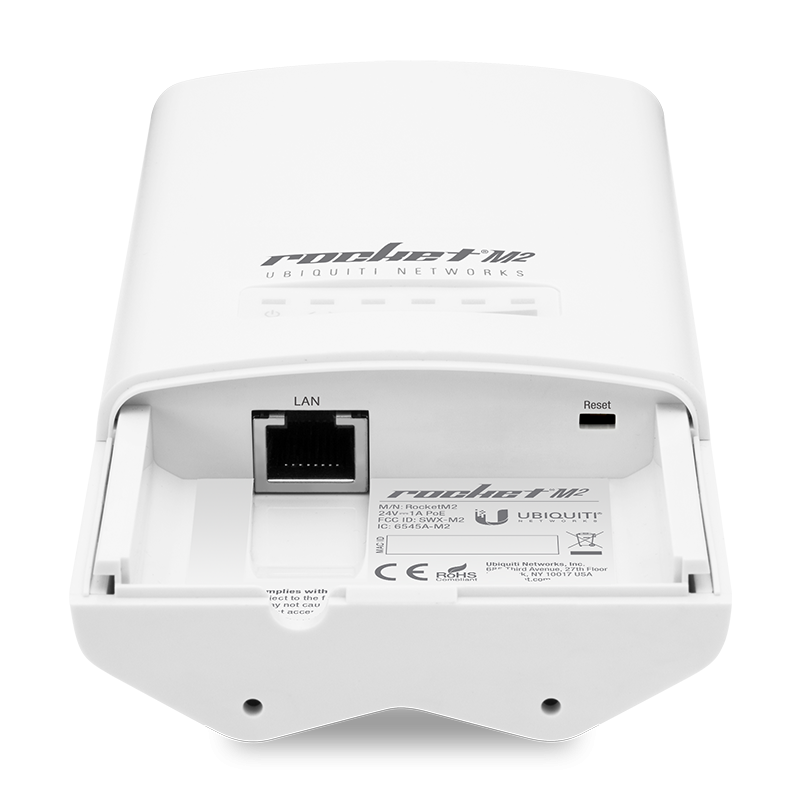

- Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet or 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
- Wireless Approvals: FCC Part 15.247, IC RS210, CE or FCC Part 90Y
- RoHS Compliance: Yes
- Enclosure Size: 16 x 8 x 3cm (length, width, height)
- Weight: 0.5kg
- Enclosure Characteristics: Outdoor UV Stabilized Plastic
- Mounting Kit: Pole Mounting Kit included
- Power Supply: 24V, 1A POE Supply included
- Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
- Operating Temperature: -30C to 75C
- Operating Humidity: 5 to 95% Condensing
- Shock and Vibration: ETSI300-019-1.4
- RF Connector: 2x RP-SMA (Waterproof) or 2x RP-SMA and 1x SMA (Waterproof)
- Max Power Consumption: 6.5 Watts or 8 Watts
Free Shipping
For all orders over $200
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Fri: 07AM - 06PM
+256 751 786100
Ubiquiti Rocket M2 2.4GHz MiMO PtP/PtMP Bridge, Base Station ROCKETM2
The Ubiquiti Rocket M2 is a 2.4GHz rugged, hi-power, very linear, 2x2 MIMO radio with enhanced receiver performance. The Ubiquiti Rocket M2 features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCP/IP). Ubiquiti Rocket M2 Key Features- Scalability: 300+ subs per sectored base station
- Latency: Latency remains low for voice and video applications as network scales
- Speed: 150Mbps+ PtMP performance
- Range: 50km+ outdoor range, subject to antenna, terrain and local variables
| 1: Internet Backbone 2: ISP Network 3: Ubiquiti RocketDish with Rocket M 4: Ubiquiti RocketDish with Rocket M 5: AirMax BaseStation with Rocket M 6: Corporate building with NanoStation M client 7: House with NanoStation M client 8: Small business with NanoStation M client 9: Lightpole with NanoStation M daisy-chained to a PicoStation M to create a wireless hotspot |
